RapcoHorizon AHZV-20

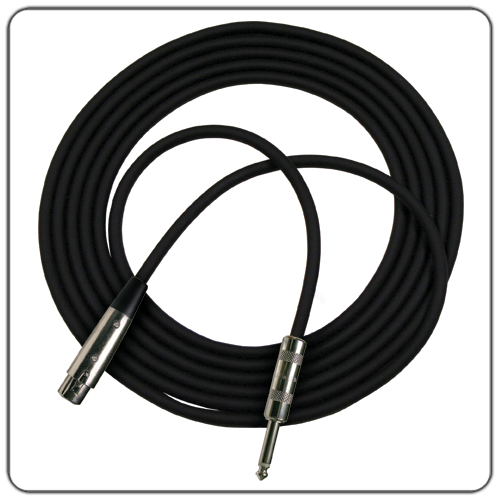

RapcoHorizon AHZV-20 20 Foot Hi-Z Mic Cable

$25.00

20 Ft. Hi-Z Microphone Cable (Pin 2 Hot)

For plugging Hi-Z mics into unbalanced inputs.  The outer jacket is a durable and flexible matte PVC compound.  Since many Hi-Z mics have different pins hot, we give you your choice for your customer’s particular microphone.

Out of stock

SKU: 4256 Categories: , Tag:
Brands:

Description

image_pdfimage_print

For plugging Hi-Z mics to unbalanced inputs. XLR female to 1/4″ mono connectors.

• Utilizing a serve shield process for quiet operation yielding maximum flexibility

• Matte jacket PVC material is very flexible yet durable with very low memory

• Pure copper conductor and shield

• (1) 24 gauge center conductors

• Individually tested for performance and quality

Cable:
Conductor Gauge:
Shield:
Shield Coverage:
Jacket:
O.D.
Capacitance:
Characteristic Impedance:
D.C. Resistance @ 20°C:		INST1
(1)24 gauge
Bare annealed copper serve
70%
Matte PVC
0.242″
25 pF/ft. @ 1 kHz
60Ω NOMINAL
23Ω/1000′
