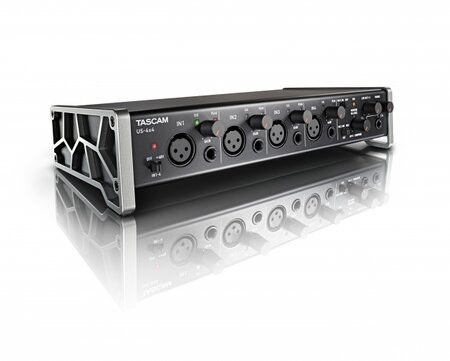

TASCAM US-4X4 Computer-Tablet Audio Interface
TASCAM US-4X4 Computer-Tablet Audio Interface Front

TASCAM US-4X4 Computer-Tablet Audio Interface

$249.99

4-in/4-out Audio/MIDI Interface with HDDA Mic Preamps and iOS Compatibility

TASCAM’s US-4×4 combines great audio quality and ergonomic design for a powerful 4-in/4-out USB 2 audio interface.
Four of TASCAM’s Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source.

The US-4×4 includes class-compliant drivers for plug-and-play operation on Mac OSX and iOS devices like the iPad, and a simple driver adds ASIO compatibility for Windows. MIDI in and out are also included for connecting synths, drum machines, and controllers. The interface includes two DAW applications to choose from – both Cakewalk SONAR X3 LE and Abelton Live Lite 9.

With solid audio specs, iOS compatibility, and an easy-to-read angled design, the US-4×4 is the ultimate 4-channel interface for home, project, and mobile studios.

Out of stock

SKU: 7000 Categories: , Tag:
Brands:

Description

image_pdfimage_print
US-4×4
Sampling frequency44.1k/48k/88.2k/96kHz
Quantization bit rate16/24bit
Analog audio inputs
MIC ININ 1-4
ConnectorXLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance2.2k ohms
Nominal input level
GAIN:MAX-65dBu (0.0004Vrms)
GAIN:MIN-8dBu (0.3090Vrms)
Maximum input level
(GAIN:MIN )		+8dBu (1.9467Vrms)
Gain57dB
INST ININ 1-2
Connector6.3mm(1/4″)TS-jack(T：HOT, S：GND), UNBALANCED
(When set to “INST” at MIC/LINE.INST switch)
Input impedance1M ohms
Nominal input level
GAIN:MAX-63dBV(0.0007Vrms)
GAIN:MIN-6dBV(0.5015Vrms)
Maximum input level
(GAIN:MIN )		+10dBV(3.162Vrms)
Gain57dB
LINE ININ 1-4
Connector6.3mm(1/4″)TRS-jack(T：HOT, R：COLD, S：GND), BALANCED
(When set to “MIC/LINE” at MIC/LINE.INST switch)
Input impedance10k ohms
Nominal input level
GAIN:MAX-53dBu(0.0017Vrms)
GAIN:MIN+4dBu(1.228Vrms)
Maximum input level
(GAIN:MIN )		+20dBu(7.75Vrms)
Gain57dB
Analog audio outputs
LINE OUT
Connector6.3mm(1/4″)TRS-jack(T：HOT, R：COLD, S：GND), BALANCED
Output impedance110ohms
Nominal output level+4dBu (1.273Vrms)
Maximum output level+20dBu (7.75Vrms)
PHONES
Connector6.3mm(1/4″) stereo phone jack
Maximum output level45mW+45mW or more
(THD+N 0.1% or less, 32ohms loaded)
MIDI IN / OUT
ConnectorDin 5-pin
FormatStandard MIDI format
USB
ConnectorUSB B type 4-pin
FormatUSB2.0 HIGH SPEED
Power
When connected PC Dedicated AC adapter
(GPE248-120200-Z, included)
When connected iOS
Power consumption5W
Dimensions11.62″ W x 2.56″ H x 6.3″ D
(296mm W ×65mm H × 160mm D)
Weight3.53lb (1.6kg)
Operating temperature5 to 35˚C
Bundled softwareCakewalk SONAR X3 LE
Ableton Live 9 Lite
AccessoriesAC adapter(GPE248-120200-Z), USB cable, SONAR X3 LE license card, Live 9 Lite license card, User’s manual, warranty card
Audio performance
Frequency response
LINE OUT(BALANCED)
44.1k/48k Hz20Hz to 20kHz, +0dB/-0.1dB
88.2k/96k Hz20Hz to 40kHz, +0dB/-0.2dB
PHONES
44.1k/48k Hz20Hz to 20kHz, +0dB/-0.5dB
88.2k/96k Hz20Hz to 40kHz, +0dB/-2dB
THD0.003% or less
S/N ratio101dB or more
Crosstalk95dB or more
EIN-127dBu or less
Computer system requirements
Windows
OSWindows 7(32-bit SP1, 64-bit SP1), Windows 8.0(32-bit, 64-bit), Windows 8.1(32-bit, 64-bit)* For further information of the latest OS version, please click here.
Compatible computersWindows-compatible computer with a USB 2.0 port
CPU type/speedDual core/2 GHz or faster (x86)
Memory2GB or more
DRIVERASIO2.0, WDM(MME)
Macintosh
OSOS X Mountain Lion(10.8), OS X Mavericks(10.9)* For further information of the latest OS version, please click here.
Compatible computersApple Macintosh computer with a USB 2.0 port
CPU type/speedDual core/2 GHz or faster
Memory2GB or more
DRIVERCore Audio, Core MIDI
iOS
OSiOS 7* For more information about the OS compatibility on each models, please here.

UPC 043774031016
